Ábaco

A countryside condominium and its urban design in Cajicá

Location
Cajicá, Cundinamarca
Projects
1 projects
Year
2012 - 2016

Illustrative images and renders: final finishes and details may vary from the built work. Full notice →

One site, several scales

Ábaco is a countryside condominium in Cajicá whose urban layout was designed around solar-orientation criteria; the urban plan and the 88 two-family homes form a single operation on the same site.

Ábaco occupies a long, 5.6-hectare lot in the Canelón district of Cajicá, in the middle of the Bogotá savanna: flat ground, a cold dry climate, greenhouses and pasture all around. Its western edge is defined by the Río Frío and its wooded floodplain; that edge became the soft side of the development, where the layout loosens and turns into parkland.

The layout was drawn from the course of the sun. The main road crosses the site diagonally, almost exactly on the east–west axis the sun travels, and the secondary streets hang off it running north–south. Those streets are offset from one band to the next: visual continuity is broken on purpose, and each street ends in a planted closure rather than a long vanishing line of asphalt. The result is eighty-eight houses, in forty-four pairs, arranged on parallel bands that take both morning and afternoon sun.

Outdoor life is organised as a circuit rather than a set of separate zones: a continuous pedestrian and cycle route runs around the whole perimeter, linking activity stations one after another — community vegetable garden, camping area, dog park, football pitch, tennis court, open-air theatre, children's area — until it closes on itself. Alongside it, the layout carries its own environmental infrastructure: rainwater collection, greywater recycling to the sanitary fixtures, and a recycling point beside the entrance.

The circuit never crosses a street. Where the pedestrian route meets the vehicle entrance, the gatehouse was built as a bridge: a flat slab with 12 % ramps carrying pedestrians and cyclists, with 4 metres of clearance below for residents' cars, the gatehouse and the refuse room, and the management office on top. The clubhouse repeats the idea: half-buried in an embankment, with its roof as part of the route, it holds the multipurpose hall, the gym, the children's room, the sauna, the steam room and the terrace with a barbecue.

Design began in late 2012 on the survey of a 56,427 m² farm lot, and by June 2013 the two house types — Solsticio and Equinoccio — had already been tested with daylight, cross-ventilation and temperature simulations before going on sale. Construction started with the houses in April 2014; the gatehouse, the clubhouse, the embankments and the playground were designed and built through 2015. Ábaco was developed with Mojica Constructora, with 57Uno also taking part as a partner in the venture.

Ábaco · Cajicá, Cundinamarca

How the ensemble reads

  1. 01 / 12

    First the sun, then the streets.

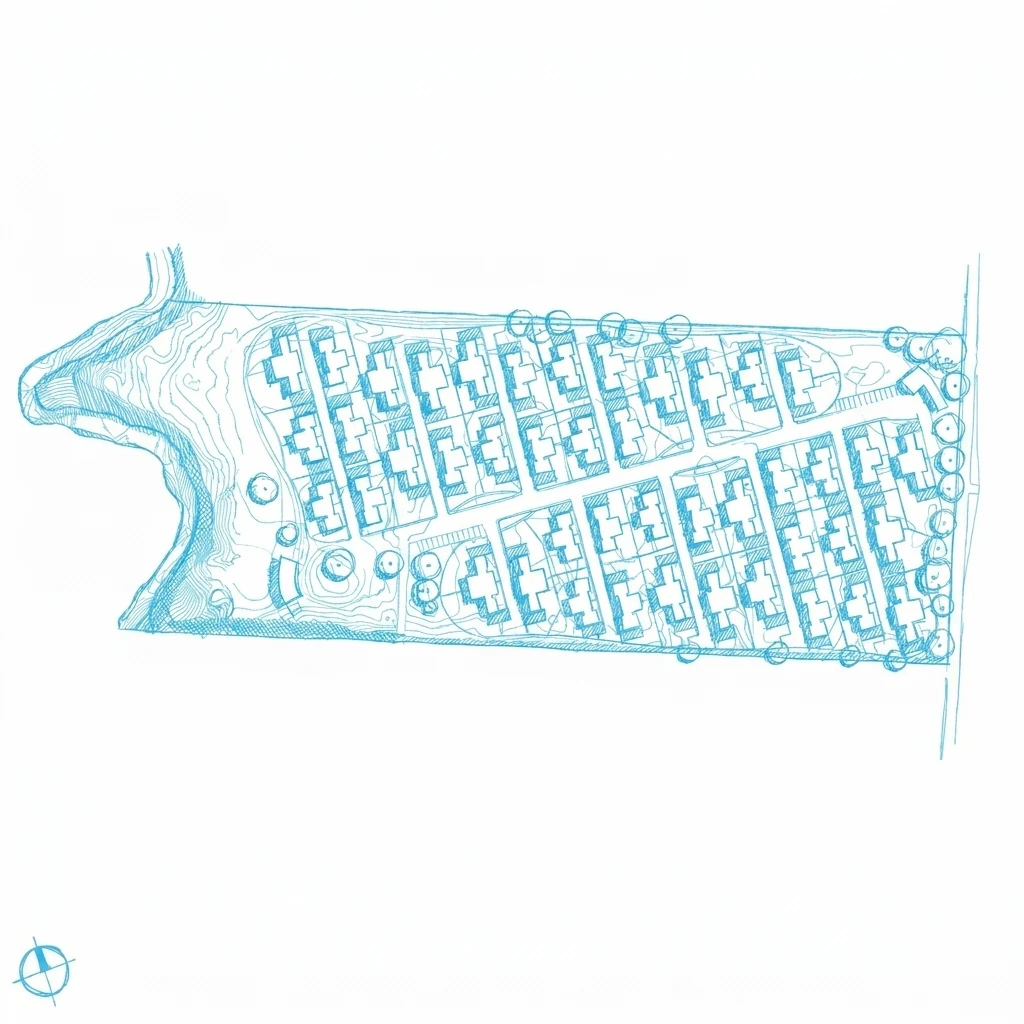

    Urban design sketch
